Smart Electronics 5V 1 One Channel Relay Module Low Level For SCM Household Appliance Control For Arduino DIY Starter Kit

stars, based on ( 0 ) reviews
$0.56now [ 1 piece / Lot ]
Quantity Price
1+ $0.56
8987 items available
Introduction
  • The module uses genuine quality relay, normally open interfaces
  • Using SMD optocoupler isolation, driving ability, stable performance
  • The module can be high or low by a jumper setting trigger
  • Fault-tolerant design, even if the control line is broken, the relay will not operate
  • The power indicator (green), the relay status indicator (red)
  • he interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient

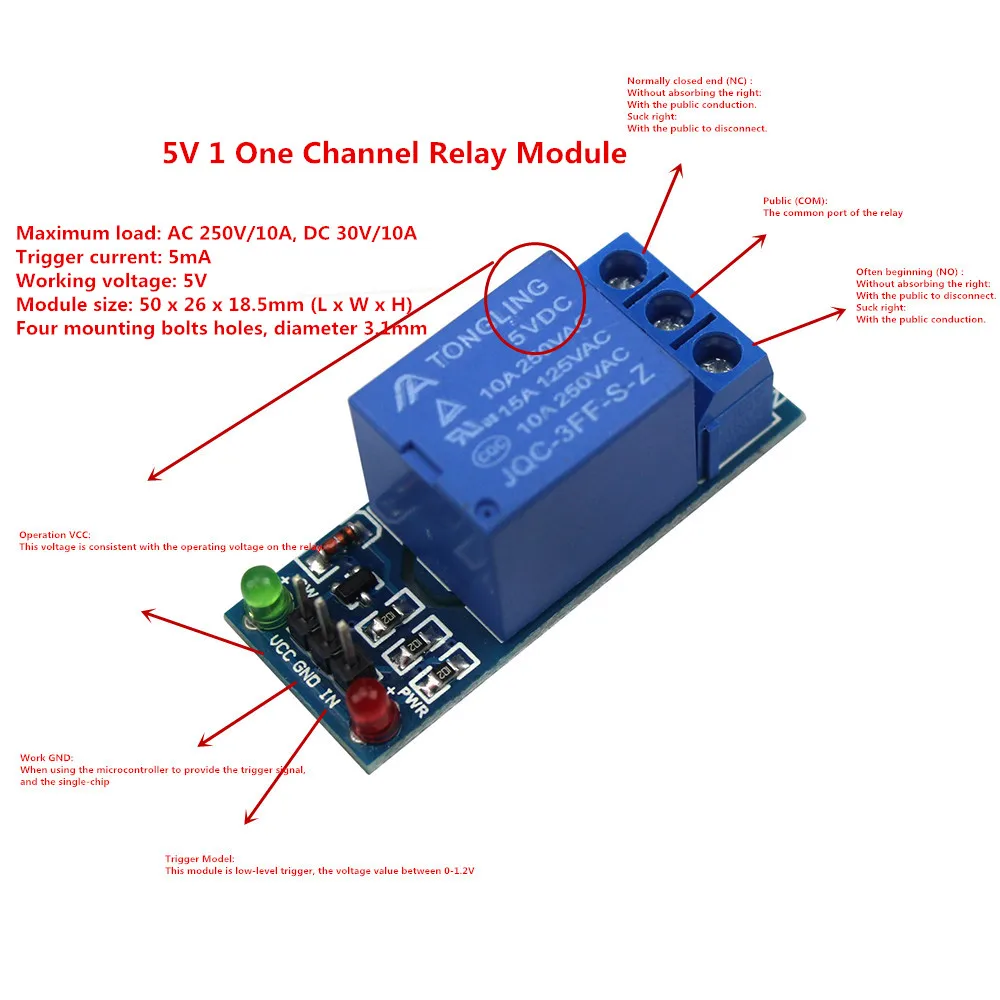

Specifications
  • Maximum load: AC 250V/10A, DC 30V/10A
  • Trigger current: 5mA
  • Working voltage: 5V
  • Module size: 50 x 26 x 18.5mm (L x W x H)
  • Four mounting bolts holes, diameter 3.1mm
  • DC+: positive power supply (VCC)
  • DC-: negative power supply (GND)
  • IN: can be high or low level control relay
  • NO: normally open relay interface
  • COM: Common Interface Relays
  • NC: normally closed relay interface
Note
  • It is low level trigger when jumper connect to LOW pin
  • It is high level trigger when jumper connect to HIGH pin
Shipping List
  • 1 way relay module: 1pcs
1relay (1)1relay (2)1relay (3)
