Robot Controller Kit For Robot Arm RC Tank Car Chassis Compatible With Arduino 2 Way Motor 16 Way Servo Tank Car DIY Toy Robotic

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$19.34now [ 1 piece / Lot ]
Quantity Price
1+ $19.34
19734 items available
Introduction
ESP8266-Based Serial WiFi Shield for Arduino is designed and developed by Shenzhen Doctors of Intelligence & Technology (SZDOIT). The shield is designed based on esp8266 by Espress if Systems, pin-compatible with Arduino UNO/Mega2560 DevBorad.
WiFi module is industrial-grade chips ESP8266, which is ESP-12E with metal shield, strong anti-interference ability
Shield is pin-compatible with Arduino Uno, Mega2560 and other control board. A voltage converter chip is used to deal with 3.3V (Esp8266) and 5V (Arduino);
Dual DIP switches is used for serial ports so that this module shield can be used alone as an Arduino Uno expansion board, and also be used as ESP8266 expansion board;
Serial data is transported to WiFi device transparently, and vice versa.  Arduino program does not need any configuration;
Web Server is developed to configure WiFi parameters and serial port parameters;
The module shield can be used as an independent ESP8266 development board. for instance downloading the official AT commands firmware NodeMCU open source firmware can be used;
The module shield also can be used as stand-alone expansion board for Arduino Uno.

Features
  • 802.11 b / g / n wireless standards
  • STA / AP modes support
  • TCP / IP protocol stack One socket
  • Supports standard TCP / UDP Server and Client
  • Supports serial port baud rate configuration:
  • 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
  • Supports serial data bits: 5/6/7/8 bits
  • Supports serial parity: none
  • Supports serial stop bits: 1/2 bit
  • Pin-compatible with Arduino UNO, Mega
  • Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13
  • ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / UART TX / UART RX
  • KEY button: modes configuration
  • Dual-Ports DIP switches: switching Arduino and ESP8266
  • WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode:<200ua;< span="">
  • Serial WiFi transmission rate: 110-460800bps
  • Temperature: -40~ + 125
  • Humidity: 10%-90% non-condensing
  • Weight: about 20g

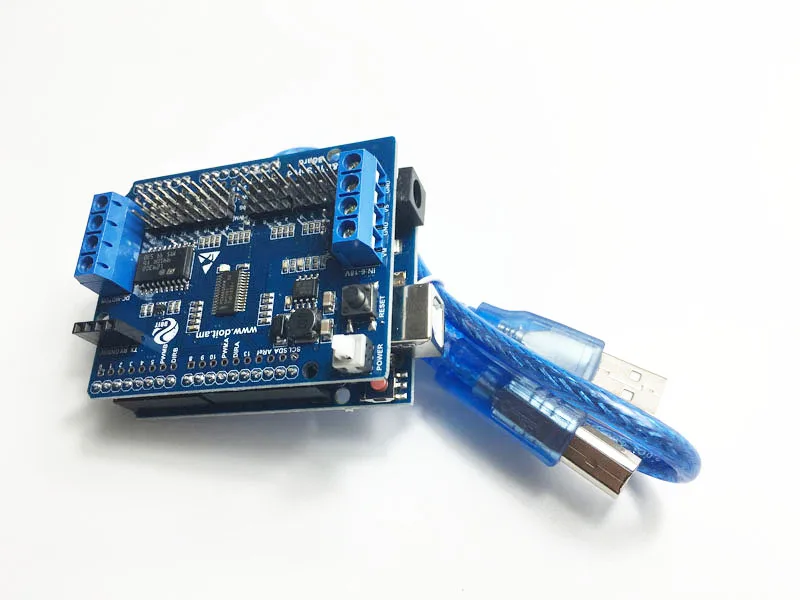

Shipping List
  • 2-way motor &16-way servo shield: 1pcs
  • Compatible UNO board: 1pcs
  • USB Cable: 1pcs
unokit (1)unokit (4)unokit (5)





Use:
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Connectors/Wiring
For Vehicle Type:
Cars
Upgrade Parts/Accessories:
Adapter
Size:
other
Remote Control Peripherals/Devices:
Receivers
Tool Supplies:
Cutting
Model Number:
other
Brand Name:
Technical parameters:
Value 2
Material:
Metal
