PAM8610 Digital Power Amplifier Board 2 X15w Dual Channel Stereo Mini Class D Power Amplifier Board for Arduino DIY Electronics

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$0.87now [ 1 piece / Lot ]
Quantity Price
1+ $0.87
8974 items available
Technical parameters:

  • 1. Supply voltage: DC 7V-15V
  • 2. Output power: 10w + 10w (8 load)
  • 3. Efficiency: 90%
  • 4. Shutdown Current: 4uA
  • 5. Quiescent current; 20mA
  • 6. SNR: 86%
  • 7. Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1%
  • 8. Frequency range: 20Hz-20KHz
  • 9. Input impedance: 15K
  • 10. Output Impedance: 4-8
  • 11. Amplifier board size: 30mm * 25mm * 2.5mm

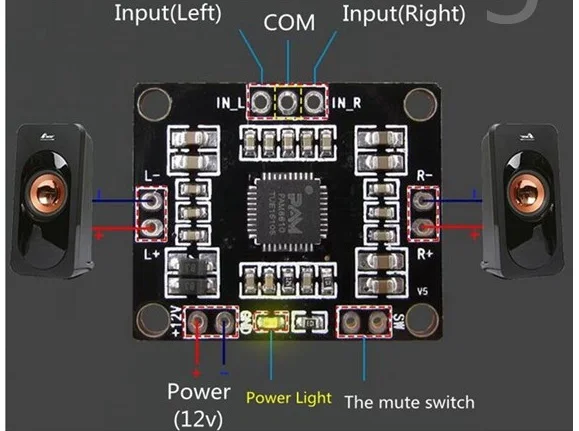

How to use:
  • 1. The power supply voltage limit is 16.5V, do not use more than this voltage.
  • 2. The power supply is recommended for 12v, 3A power supply filter better
  • 3. 4-8 inch stereo speakers recommended.
  • 4. Do not short-circuit the audio output to each other or shorted to ground.
  • 5. Carefully check before electricity, ensure wiring is correct before electricity.
Shipping List
  • PAM8610 module: 1pcs
pam8610 (2)pam8610 (4)pam8610
Use:
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Connectors/Wiring
For Vehicle Type:
Cars
Upgrade Parts/Accessories:
Adapter
Size:
other
Remote Control Peripherals/Devices:
Receivers
Tool Supplies:
Cutting
Model Number:
other
Brand Name:
Technical parameters:
Value 2
Material:
Metal
