Optical Fingerprint Reader Sensor Module For Arduino Mega2560 UNO R3 Serial Output Development Of Dedicated Identification Kit

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$21.07now [ 1 piece / Lot ]
Quantity Price
1+ $21.07
8974 items available
Introduction

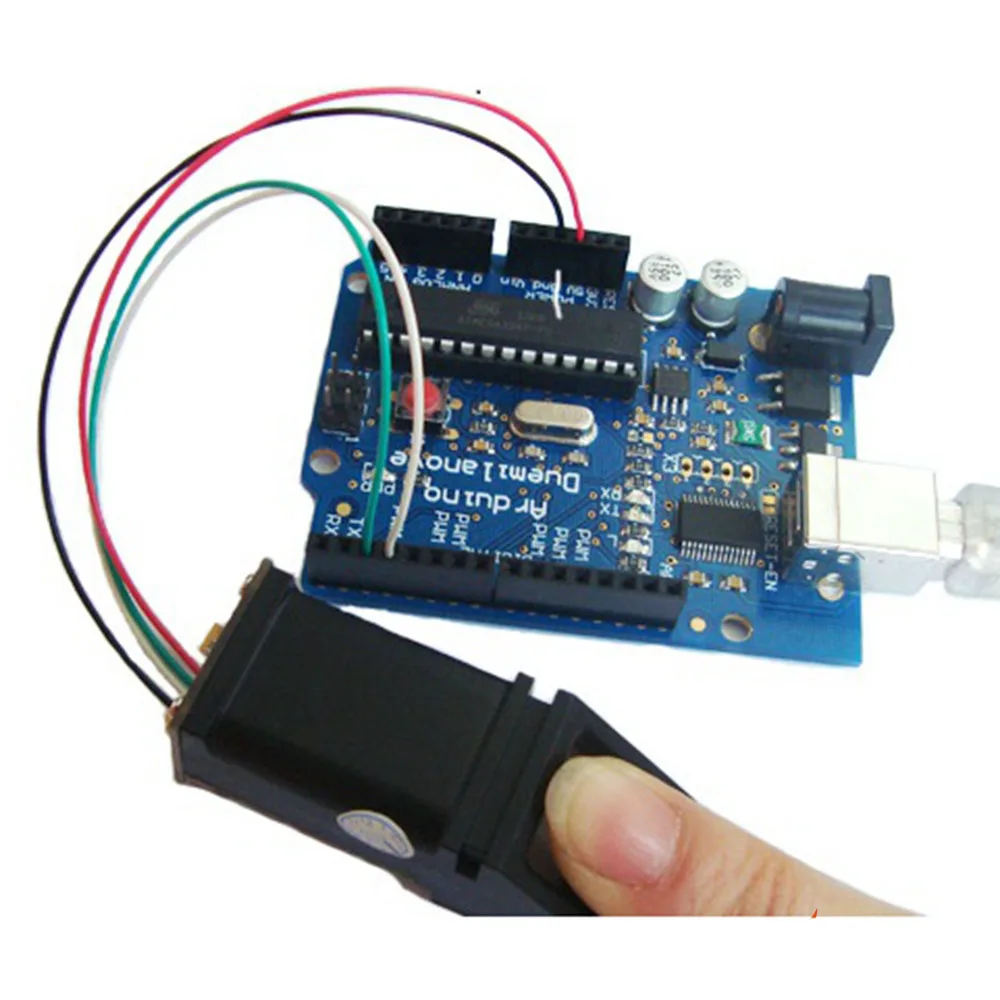

This is an Arduino compatible fingerprint module. With the high speed DSP processor, it could also work with other serial device, like MSP430, 51, AVR, PIC, STM32, ARM and FPGA device. This fingerprint module could work alone without any principal computer or any PC software. It could store 1000 fingerprint. Support fingerprint entry, intelligent image processing, fingerprint comparison and fingerprint search mode. It also has a high sensitivity to both wet and dry fingerprint recognition.
This module could be widely used in security field, such as license management .etc. It can also be used to replace the IC card, password, hardware switch in your application.

Features
  • Power supply: DC 3.8V-7.0V
  • Operating current: 65mA (Typical)
  • Interface: UART (TTL logical level)
  • Baud rate: (9600*N)bps, N=1~12(default N=6, 57600bps)
  • Image acquisition time:<1s< span="">
  • Storage capacity: 1000
  • FAR:<0.001%< span="">
  • FRR:<1.0%< span="">
  • Average searching time:<1s (1:500, average)
  • Matching Mode: comparison mode (1:1) and search mode (1:N)
  • Character file: 256 bytes
  • Template file: 512 bytes
  • Security level: 5(1,2,3,4,5(highest))
  • Working environment: Temp: -20°C - +60; RH: 40%-85%
  • Storage environment: Temp: -40°C - +85°C; RH:<85%< span="">
  • Touch area dimension: 14.5*19.4 mm (0.57*0.76")
  • Outline dimension: 54*20*20.5 mm (2.13*0.79*0.81")
Shipping List
  • Finger sensor: 1pcs
fingerfinger (2)finger (4)finger (5)
Use:
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Connectors/Wiring
For Vehicle Type:
Cars
Upgrade Parts/Accessories:
Adapter
Size:
other
Remote Control Peripherals/Devices:
Receivers
Tool Supplies:
Cutting
Model Number:
other
Brand Name:
Technical parameters:
Value 2
Material:
Metal
