  • Metal Robotic Claw Gripper Paw For Robot Mechanical Arm Compatible With MG996R Servo To DIY Robotic Model Teaching Project
  • Metal Robotic Claw Gripper Paw For Robot Mechanical Arm Compatible With MG996R Servo To DIY Robotic Model Teaching Project
  • Metal Robotic Claw Gripper Paw For Robot Mechanical Arm Compatible With MG996R Servo To DIY Robotic Model Teaching Project
  • Metal Robotic Claw Gripper Paw For Robot Mechanical Arm Compatible With MG996R Servo To DIY Robotic Model Teaching Project

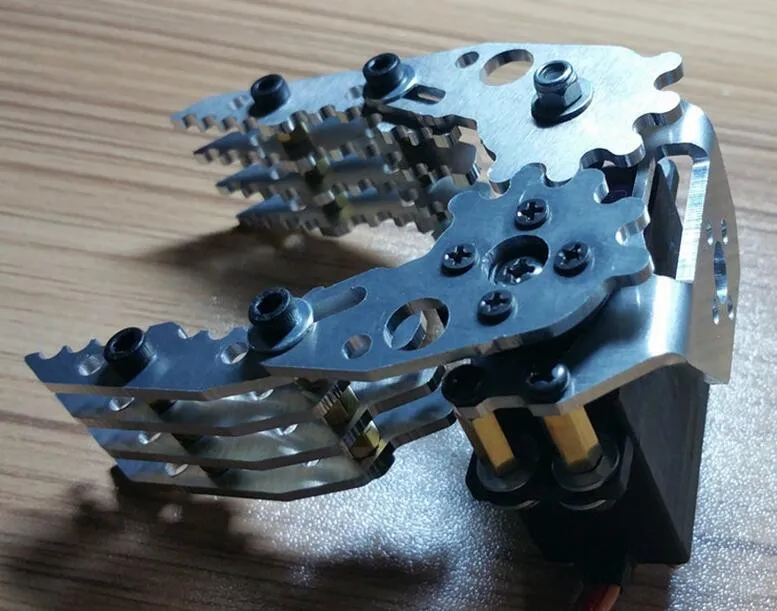

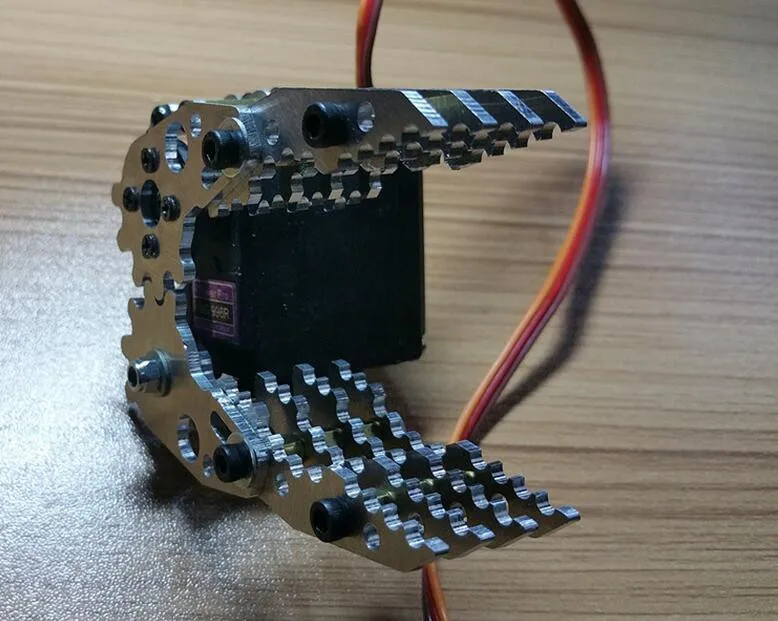

Metal Robotic Claw Gripper Paw For Robot Mechanical Arm Compatible With MG996R Servo To DIY Robotic Model Teaching Project

stars, based on ( 0 ) reviews
$19.93$29.41now [ 1 piece / Lot ]
Quantity Price
1+ $19.93
5986 items available
Introduction
  • Suitable for standard servos, perfect compatible with MG995,MG996 etc.
  • Material: hard aluminum alloy
  • Weight: 40 g (only the claw )
  • Maximum Angle spacing: about 86 mm
  • About the Optional Servo:
the ​MG996R 180 degree Digital Servo Parameters:
  • Dimension : 40.8mm x 20mm x 38mm
  • Weight : 55g
  • Connector Wire: 11.81"  (300mm)
  • Operating Speed: 0.17sec / 60  degrees (4.8V)
  • Operating Speed: 0.13sec / 60  degrees (6.0V)
  • Operation Voltage : 4.8 - 7.2Volts
  • Torque:13KG.CM(4.8); 15KG.CM(6.0V)
  • Gear Type: All Metal Gears

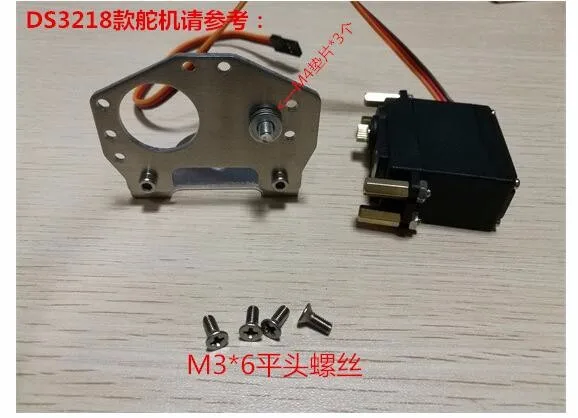

the DS3218 180 degree Digital Servo Parameters:
  • Size:40*20*40.5mm
  • Weight:60g
  • Wire length:320mm
  • Gear Type: All Metal Gears
  • Dead Zoon setting:4 Microseconds
  • Speed: 0.14sec/60 degree at(6v)   0.16sec/60 degree at(7.2v)
  • Torque: 18kg.cm.at(6v)   20kg.cm.at(7.2v)
  • Voltage: 4.8v-7.2v

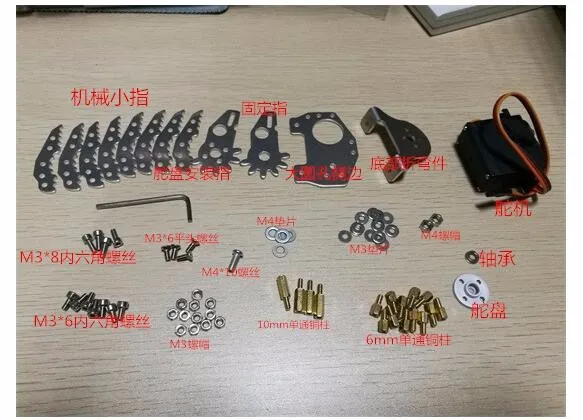

Shipping List:
  • Metal Mechanical Claw  1pcs
  • Metal Gear Servo  1pcs  (Optional servo: MG996R or DS3218)
  • Metal servo hub horn  1pcs
Warm prompt:
  • For the shipping convenience, the product is unassembled.
  • if you need the assembly instructioin, please tell us your email, we'll send it to you.
  • Free Presented several screws and nuts.
g6 (2)g6 (3)g6 (4)g6 (5)g6 (6)g6 (7)g6 (9)g6 (12)g6 (13)g6 (14)g6 (15)g6 (16)g6 (17)

Use:
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Connectors/Wiring
For Vehicle Type:
Cars
Upgrade Parts/Accessories:
Adapter
Size:
other
Remote Control Peripherals/Devices:
Receivers
Tool Supplies:
Cutting
Model Number:
other
Brand Name:
Technical parameters:
Value 2
Material:
Metal
