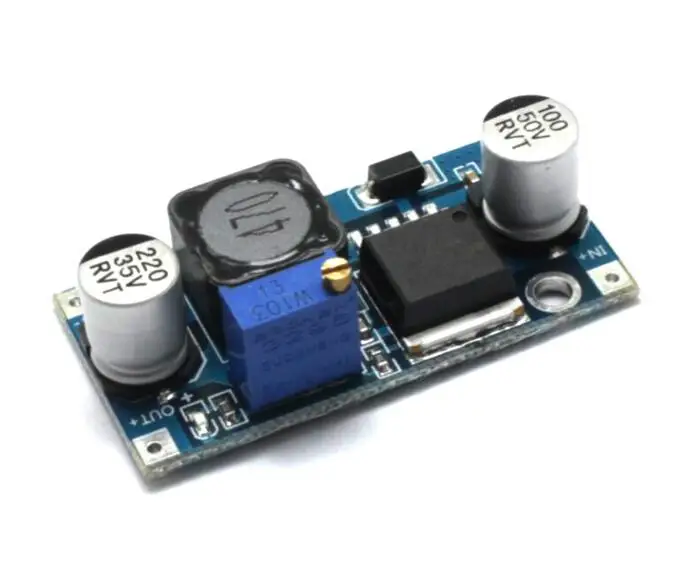

LM2596S LM2596S-ADJ LM2596 DC-DC Converter Step Down Power Supply Module Output 1.23V-30V Adjustable Voltage Regulator For Toy

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$0.59now [ 1 piece / Lot ]
Quantity Price
1+ $0.59
8974 items available
Introduction
  • Note:This is high performance DC to DC Step Down Adjustable Power Supply Module
  • Based on well kwon LM2596 Switching Regulator.
  • Input voltage: 4.5-35V
  • Output Voltage: 1.25-30V (adjustable)
  • Output current: rated current 2A, maximum 3A (need to add heat sink),
  • if the output power greater than 15W, the proposed combined heat sink
  • Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
  • Switching Frequency: 150KHz
  • Rectifier: Non-Synchronous Rectification
  • Module Properties: Non-isolated step-down module (buck)
  • Short circuit protection: current limiting, since the recovery
  • Operating temperature: Industrial grade (-40 ° to +85 °) (output power 10W or less)
  • Full load temperature rise: 40 °
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Size: 49 (L) * 23.5 (W) * 12.5 (H) mm (with potentiometer)
Output ripple:
  • Input 12V Output 5V 3A 60mV (MAX)
  • Input 24V Output 12V 3A 120mV (MAX)
Shipping List
  • Lm2596 module: 1pcs
LM2596 LM2596S (1)LM2596 LM2596S (2)






Use:
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Connectors/Wiring
For Vehicle Type:
Cars
Upgrade Parts/Accessories:
Adapter
Size:
other
Remote Control Peripherals/Devices:
Receivers
Tool Supplies:
Cutting
Model Number:
other
Brand Name:
Technical parameters:
Value 2
Material:
Metal
