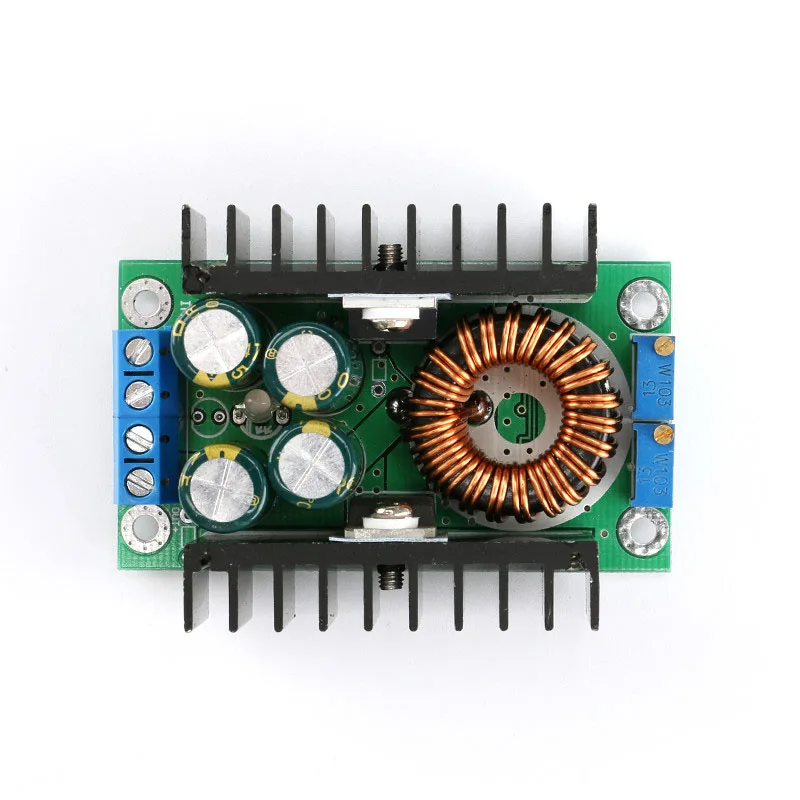

DC-DC CC CV Buck Converter Volt Step Down 12V 19V 24V Car Laptop Power Supply Module 7-40V To 1.2-35V 8A 300W With LED Indicator

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$3.89now [ 1 piece / Lot ]
Quantity Price
1+ $3.89
8974 items available
Features
  • Use a dedicated benchmark IC, and high-precision current sensing resistor, make more stable constant current, (when 20°C to 60°C constant current 5A, temperature drift less than 5%). suitable for LED driver.
  • Fixed turn lamp current is 0.1 times the current value (When charging, used to identify whether the battery is fully charged);
  • High output current, the max output current can reach 8A.
  • Low output ripple , high frequency capacitor reduces output ripple.
Specifications
  • Module Properties: non-isolated step-down module, constant current and constant voltage module (CC CV), charging module
  • Input voltage: 7-40V
  • Output voltage: 1.2-35V (continuously adjustable)
  • Output Current: 8A Max ( power tube temperature exceeds 65°C please add cooling fan )
  • Constant current range :0.2-8A ( adjustable )
  • Turn lamp current : constant current value * ( 0.1 ) , turn lamp current and constant current value linkage.For example, constant current value 3A, turn lamp current is set to 0.1 times constant current(0.1 * 3A = 0.3A). When adjust the constant current to 2A , then turn lamp current is 0.1 times constant current (0.1 * 2A = 0.2A).
  • Turn lamp current is fixed to 0.1 time in this version( actually turn lamp current value is probably not very accurate ), it is for identify whether the battery is fully charged.
  • Dropout voltage: 1V
  • Output Power: Maximum power is about 300W, power tube temperature exceeds 65 degrees please add fan.
  • Conversion efficiency : up to approximately 95% ( the higher output voltage, the higher the efficiency )
  • Operating frequency: 180KHZ
  • Output ripple : 20M bandwidth ( for reference only )
  • Input 24V Output 12V 5A ripple around 50mV ( excluding noise )
  • Operating temperature : Industrial grade (-40 °C to +85 °C)
  • No-load current : Typical 20mA (24V step down to 12V)
  • Load regulation : ± 1% ( constant voltage)
  • Voltage regulation : ± 1%
  • Constant accuracy and temperature: actual test , the module temperature changes from 25 degrees to 60 degrees , the change of the constant current value is less than 5% ( constant current value 5A)
  • Dynamic response speed : 5% 200uS
  • Potentiometer adjustment: clockwise ( increase ) , counterclockwise ( decrease ). The potentiometer close to the input port is for voltage adjust (CV), the potentiometer close to the output port is for current adjust(CC).
  • Indicator : double color indicator. When charging the indicator is RED, fully charged is GREEN( No load is green ).
  • Output short circuit protection : Yes , constant current ( constant current value you set)
  • Input Reverse Polarity Protection: None
  • Output prevent backflow : None.
  • Wiring: Terminal
  • Size:65(L)*47(W)*23.5(H) mm
Applications
  • High-power LED constant current drive ,
  • Lithium battery(or Iron battery) charge,
  • 6V, 12V, 14V, 24V battery charge ,
  • Nickel-cadmium nickel-metal hydride battery ( battery pack ) charge ,
  • Solar panels and wind turbines
  • Battery charge:
  • Make sure of the battery float voltage and charging current that you need, the input voltage of the module.
  • Adjust the constant voltage potentiometer, adjust the output voltage to about 5V.
  • Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value.
  • Adjust the constant voltage potentiometer make the output voltage reaches the float voltage;
  • Connected to the battery, try to charge.
  • (1,2,3,4 steps to connect the power module input, output no-load does not connect battery.)
  • LED constant current drive:
  • Make sure operating current and Max operating Voltage of the LED you need to drive.
  • Adjust the constant voltage potentiometer, adjust the output voltage to about 5V.
  • Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current.
  • Adjust constant voltage potentiometer make the output voltage reach the maximum LED operating voltage.
  • Connect LED, test.
  • (1,2,3,4 steps to connect the power module input, output No-load does not connect LED.)
Shipping List
  • Buck Converter Volt Step Down module: 1pcs
