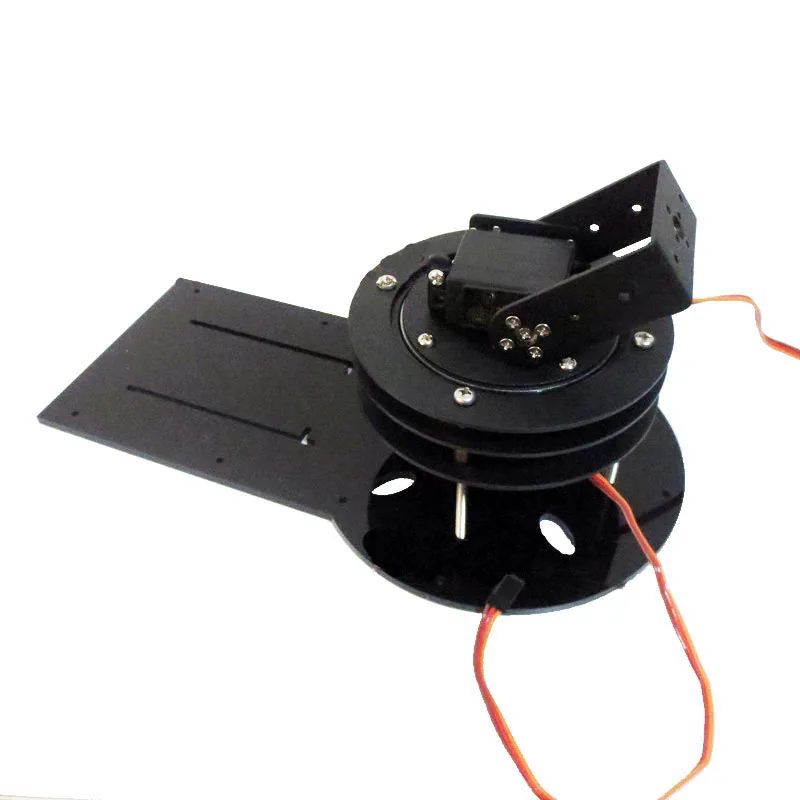

2 DOF All Metal Rotation Base Platform For Robot Arm With 2pcs High Torque Servo 996r/DS3218 Robotic Teaching Project of Arduino
$38.67$57.89now [ 1 piece / Lot ]
| Quantity | Price |
| 1+ | $38.67 |
Specifications
- Size: 280mm*150mm*150mm
- Material: Aluminium Alloy
- MG996R Servo Parameters:
- Dimension : 40.8mm x 20mm x 38mm
- Weight : 55g
- Operating Speed: 0.17sec / 60 degrees (4.8V)
- Operating Speed: 0.13sec / 60 degrees (6.0V)
- Operation Voltage : 4.8 - 7.2Volts
- Torque:13KG.CM(4.8); 15KG.CM(6.0V)
- Gear Type: All Metal Gears
- Connector Wire: 11.81" (300mm)
- DS3218 Servo Parameters:
- Size:40*20*40.5mm
- Weight:60g
- Wire length:320mm
- Speed: 0.14sec/60 degree at(6v) 0.16sec/60 degree at(7.2v)
- Torque: 18kg.cm.at(6v) 20kg.cm.at(7.2v)
- Voltage: 4.8v-7.2v
- Dead Zoon setting:4 Microseconds
Shipping list
- Metal servo Hub Horn: 2pcs
- High torque Servo: 2pcs (Optional Servo: MG996R or DS3218)
- A full set rotation base: 1pcs
- Thick metal plate: 1pcs
- Multifunctional bracket: 1pcs
- Cupped Bearing: 1pcs
- A full set of screws and nuts
