1pcs XL4015 5A High Power 5A 75W DC-DC Module Adjustable Step-Down Buck Voltage Converter Power Supply Module LED Driver DIY Kit

stars, based on ( 0 ) reviews
FREE SHIPPING Over $20 for All orders.
$1.85now [ 1 piece / Lot ]
Quantity Price
1+ $1.85
8974 items available
Introduction

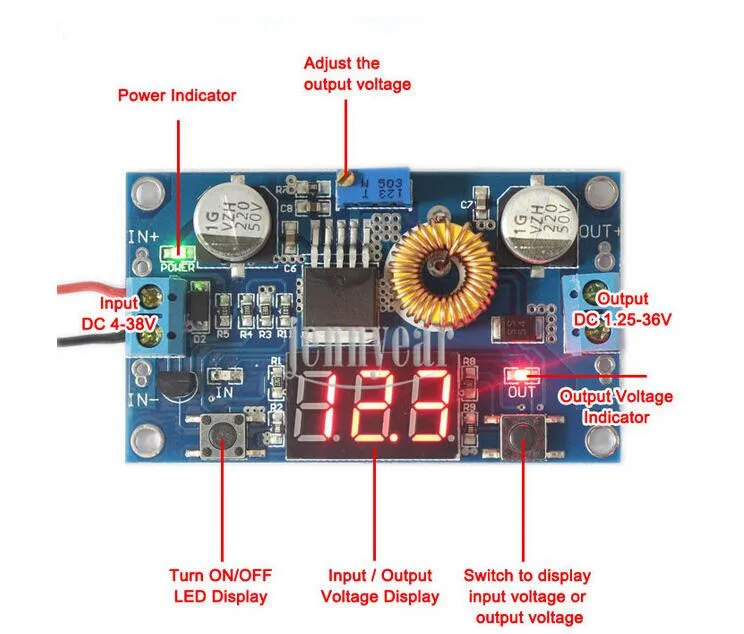

This module integrated a volage meter with the DC-DC converter – XL4015, with this module, you can monitor your project much more easier. The voltage meter can measure the input voltage or output voltage, which is adjustable by the protentiometer, with a precision of ±0.1V.Note that the voltage meter would not work if the input voltage below 4V. Press the button (right) to switch voltage to measure, between the input voltage and output voltage. There are 2 LEDs to indicate which voltage is measuring by the voltage meter. And it has a Power indicator LED (GREEN). You can change the input or output voltage measurement by Short press the button on the right side ,and also can close the voltage meter by pressing the button on the left side. This module can be also calibrated manually as following method:
  • Power up the module with a stable and accurate power supply , such as a 5V power supply, then shot press the button on the right side to select which one do you need to adjust (input or output), and long pressing (press time > 2S) the button(right) makes the module enter the calibration model, after releasing the button, the related LED would blink to indicate which voltage is now calibrating, and the numeric display blinks the correction value.
  • Short press the button to change the correction value, Short press the button on the right side, voltage increases one unit, Short press the button on the left side, voltage reduce one unit, for example, if your power supply is 5V, but the result of voltage meter is 4.8, you need to set the value to 5V.
  • Long press button on the right side(press time ≈ 2S), to store the voltage correction value.
  • Calibrate the output voltage in the same way above; The correction value will be stored in nonvolatile memory.
Specification
  • Input Voltage: 4V~38V (1.5V higher than the output at least)

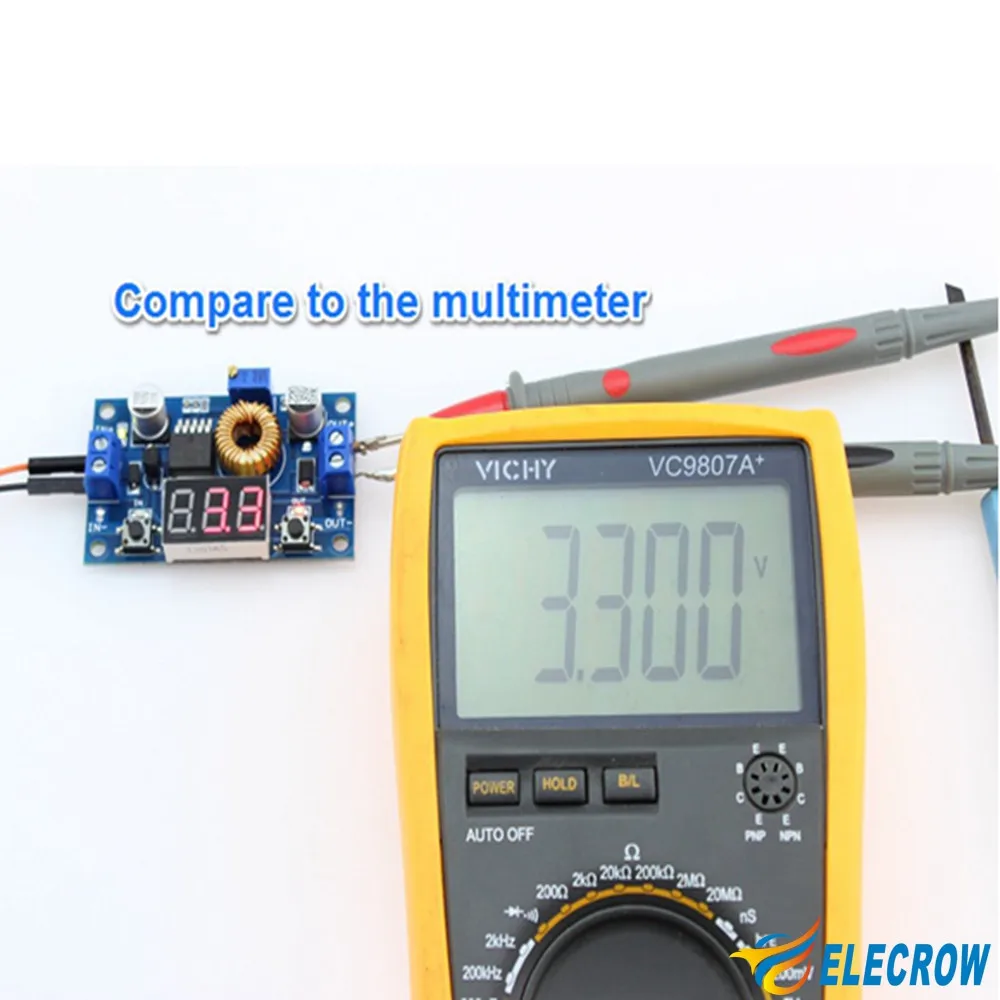

  • Measurement Accuracy:±0.05V
  • Adjustable Output Voltage: 1.25V~35V.
  • Output Current: 5A
  • Dimension: 60mm x 37mm x 18mm
Shipping List
  • 5A 75W DC-DC Module: 1pcs


Tips: When the output voltage can not adjustable and alway same as the input voltage, please turn the potentiometer counterclockwise more than 10 turns first. Because of the default output voltage of this module is 20V.
